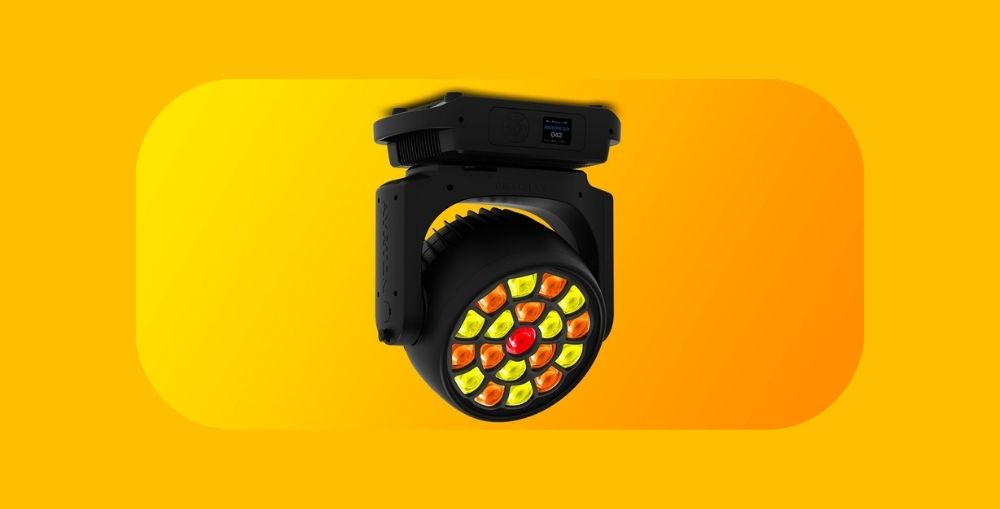

For the first time in its history, Ayrton has launched a weather-sealed effects luminaire that offers as much creative potential indoors as outdoors. Argo 6 presents a minimalist design incorporating features for total protection against harsh weather with easier internal access.

A new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, mean Ayrton has been able to reduce overall weight by 20%. Meanwhile, the placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling.

Available as Wash or FX versions, Argo 6 is equipped with 19 x LEDs of 40W with RGB+W additive colour synthesis that can deliver a light output of 13,000 lumens. Its 280mm anti-reflective treated glass front window is designed to ensure optimal visuals and offer increased performance. Argo 6 can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°.

Argo 6 FX
Argo 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the Wash version and offers a continuous rotation of the pan and tilt movement I.R.S.TM. Argo 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM.

Argo 6 Wash
For the first time, Ayrton has provided individual control of the LEDs on the Argo 6 Wash version and added a virtually infinite library of effects. Argo 6 Wash is a precise machine that can obtain perfect colour reproduction. A complete library of pre-programmed colours allows quick creation of subtle, dense and contrasting swaths of light. Its black honeycomb and perfect separation of the light sources help to significantly boost the level of contrast.

Argo 6 Wash and Argo 6 FX can be used alone or in combination with the main LED matrix.
