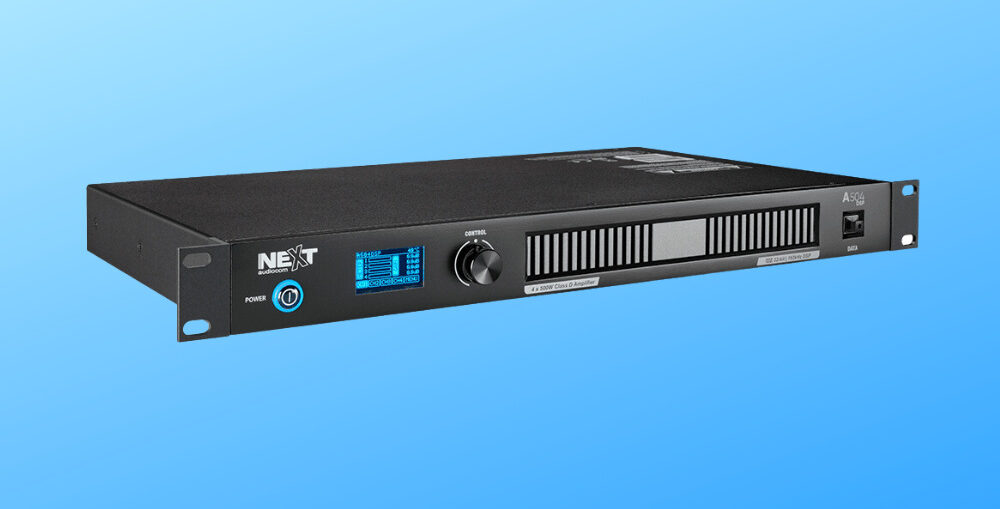

The NEXT Audiocom A504DSP amplifier combines a lightweight, 4 x 500W (2 x 1000W) amplifier, with a powerful DSP engine that can be configured to suit a wide range of tasks, without the need for additional equipment. This allows the amplifier to drive a wide range of loudspeaker systems. The close integration of processing and amplification allows the DSP to monitor and better adapt to amplifier behaviour, making dynamics processing far more accurate and effective than that typically achieved with separate components.

The A504DSP flexibly distributes the total amplifier power in various combinations across four, three or two outputs to drive, for example, Four full-range loudspeakers or subwoofers, High-power subwoofer + two full-range loudspeakers, High-power subwoofer + bi-amplified speaker or High-power full-range loudspeaker + High-power subwoofer.

The A504DSP is a DSP Amplifier that has been specially designed to be a cost-effective solution for both touring and installation. Onboard an advanced DSP engine is controlled by a built-in OLED screen with an encoder or by a PC, with input/output routing, high-pass and low-pass filters, parametric EQ filters, compressors/limiters, noise gates and alignment delays.

Finally, the integrated DSP controlled by a built-in OLED screen with an encoder eliminates the need for outboard loudspeaker processors.

NEXT Audiocom
